SLD Continuous
Full Automatic
Liquid Chemical Automation System

Considering the diversity and consumption amounts of liquid chemicals used in continuous dyeing processes, manual weighing and distribution processes are extremely difficult and risky. As a result of incorrect calculations, wrong chemical selection and under or over weighing, which are frequently encountered in manual operations, your final product quality and repeatability will decrease, and your production costs will increase exponentially. In order to avoid all these problems, Eliar offers the fastest and most flexible liquid chemical distribution system, SLD Continuous, for continuous dyeing processes.

Precise Weighing & Fast Transfer

SLD Continuous transfers up to 48 liquid chemicals at a rate of 60 liters per minute. With its special pump and flowmeter combination, it performs all your daily liquid chemical transfer operations without any risk of mixing. The right chemical, the right machine, the right amount and the right timing are guaranteed with the special SS316L pipeline, exclusively designed actuator valves and the unique design of the system based on the size of your enterprise and the dispensing distances.

Chemical Selection
With Special Collector System

SLD Continuous is equipped with a special chemical collector system that allows automatic transfer of up to 48 chemicals according to the needs of your processes. Thanks to the unique working principle of SLD Continuous, line cleaning is performed simultaneously with the chemical transfer.

Two Processes At The Same Time

SLD Continuous is equipped with two pumps and two flowmeters to double the liquid chemical transfer rate. Thanks to these unique equipment structure, which consists from 3-way L port specially designed distribution valves and the pipeline structure made of SS316L material, chemical transfer is made from one of the two main distribution lines, while another chemical is weighed simultaneously with the other line.

Customized Management
Software For Continuous Dyeing Processes

ELIAR DMS software, which is offered to your service for continuous dyeing processes, performs recipe preparation, production planning, automatic dosing and consumption reporting functions perfectly, thanks to its planning, recipe, report modules and recipes import and export features. ELIAR DMS enables the creation of reports with real-time data, integrated with the ERP and data collection software installed in your enterprises. DMS installed in the central control section of your factory works as the main server for the call terminals and tank control panels assigned to your continuous dyeing machines in the dyehouse.

ELİAR Call Terminals
For Automatic Transfer Of Chemicals

ELIAR Call Terminals, working integrated with ELIAR DMS Central Control Software and feeding tanks of continuous dyeing machines, provide automatic dosing of all chemical demands planned for the relevant machine according to the dyeing recipe to be applied. Thanks to the call terminals that can control 4 separate feeding tanks and customized for each dyeing machine, all chemicals which your continuous dyeing machines need according to the recipe will be transferred automatically.

Stock Control and
High Security Silo Filling System

Eliar designed silo stock control and filling system used in ELIAR SLD Continuous provides perfect security with its integrated electronic camlock system, barcode reader, chemical upper and lower level sensors and automatic filling pump. With the support it receives from all these safety measures, SLD Continuous ensures that the right chemical is loaded into the right silo, preventing errors that may arise from the operator or any external factor.

ELİAR Continuous Dyeing Machine
Tank Control Automation

Due to the sensitivity required in continuous dyeing processes, it is very important to control also the feeding tanks of the dyeing machines automatically. At this point, Eliar offers you ELIAR Continuous Dyeing Machine Tank Control Automation System, which is a system that can control the feeding tanks of all your dyeing machines that you are using in your enterprise and which the automatic dosing systems serve and can provide full automatic use of all the functions of the relevant feeding tanks, and that exchanges data in a fully integrated manner with data collection, ERP and Dashboard software and interfaces. In order full automatically to prepare and apply the recipes created with the DMS Central Control Software for your continuous dyeing machines, the automation of the water completion step after dosing the recipe, the continuous control of the padding level with the help of smart sensors and the continuity of the desired level, will be always under control. Automation of the cleaning process for recipes is also provided by the ELIAR Tank Control Automation. With the ELIAR Finishing Machine Tank Control Automation System, your dyeing processes can be completed untouched in terms of control and dosing, and all errors, accidents and other risks in production are eliminated perfectly.e

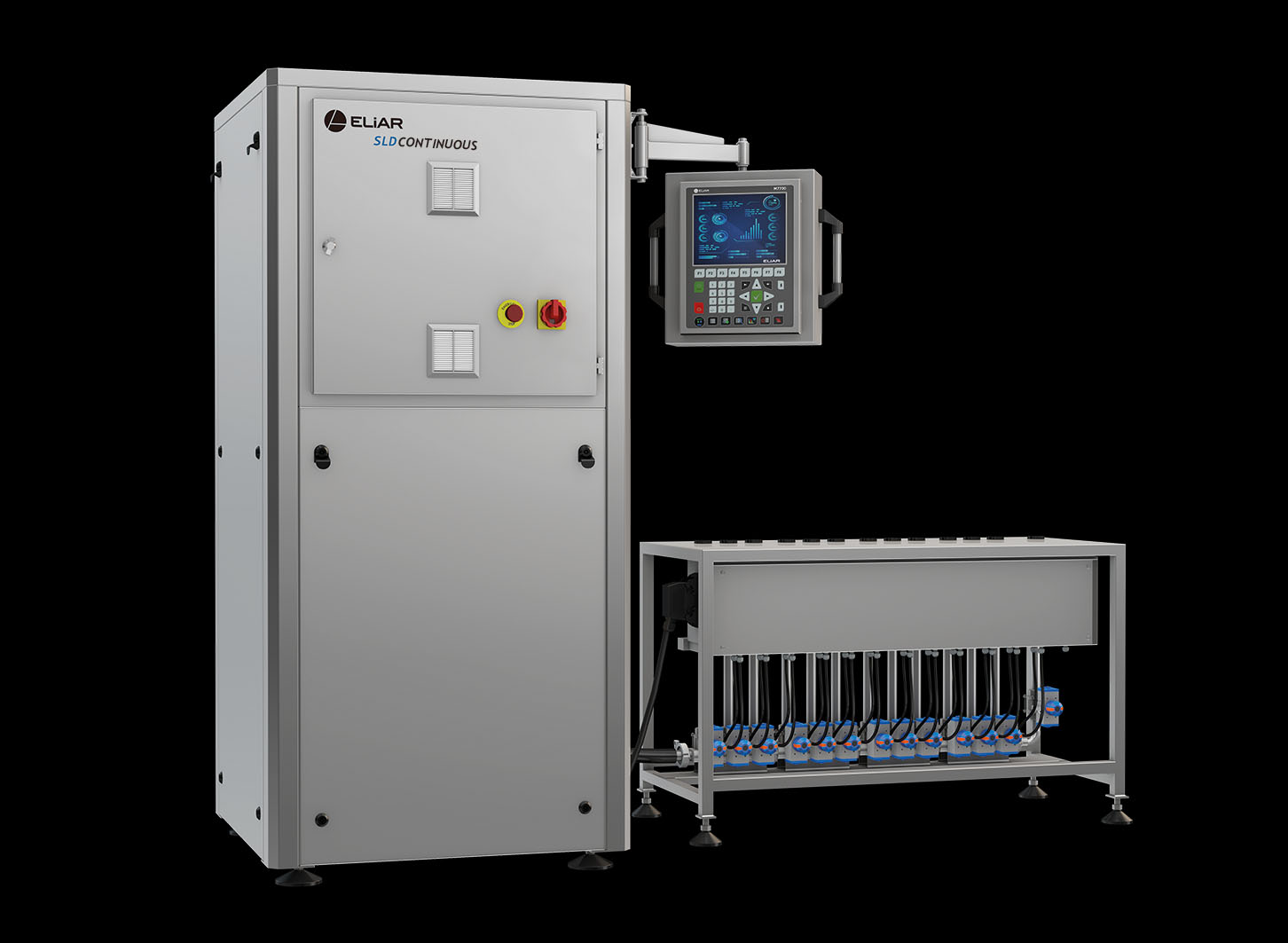

ELİAR SLD Continuous

Your factory is safe
with SLD Continuous!

If you want to plan the production capacity of your business and see the benefits of our automation system; contact now. We look forward to meeting you and adding value to your business.
